Fabrication and Forming

Cobalt has expertise in multiple metal forming and sheet metal fabrication processes. From large stretch formed cords to intricate sheet metal decorative parts, we have the equipment and experience to deliver:

  • Stretch-forming
  • Hydro-forming
  • Flat Patterns – routing, waterjet
  • Press Brakes
  • Draw form
  • Hot and Cold Joggle

Verson A-12 Stretchform Machine

stretchform 1
  • 75 ton
  • 6″ jaws
  • Max Length 320 in

Hufford A-7 Stretchform Machine

stretchform 1
  • 20 ton
  • 6″ jaws
  • Max Length 214 in

Lake Erie Hydroform Press

Lake Erie
  • 2500 ton
  • 31 in x 98 in Gauran box

Standard AP600 Hydroform Press

standardpress
  • 600 ton
  • 8x16x57 pass though Gauran Box
  • 8x22x30 closed Gauran Box
  • 400-ton high speed stamping package
  • Max Hydro Block sizes 15” wide and 144 “ long  x 3” deep

Flow Mach 2 Waterjet

Mach-2 waterjet
  • 60 K High Intensifier Pressure System
  • Max part size 78 in x 122 in
  • .003 in/ 3ft linear accuracy

CR Onsrud Panel Pro 288G18 Router

onsrud-288G18 router
  • max part size 60 in x 312in
  • 24000 rpm high speed spindle
  • 18 hp

Multicam 5000 Router

multicam 5000 router
  • max part size 80 in x 168in
  • 8 in z-travel
  • 24000 rpm high speed spindle
  • 10 hp
  • 8 position tool changer

Atlantic Haco 75 ton SRM-75-6 Press brake

haco srm 75-6
  • 75 ton
  • Max part length 82″
  • HACO ATS 590 programmable controls
  • Electronic controlled ram synchro system w/ servo-hydraulic valves
  • CNC controlled backgauge

Pacific 200 ton 200-12 Press Brake

pacific200-12
  • 200 ton
  • Max part length 144″
  • 12″ stroke
  • 36″ throat for skin forming

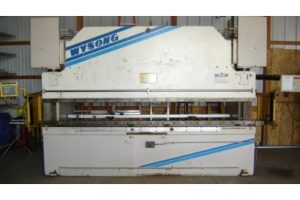

Wysong 175 ton MTH175-144 Press Brake

wysong mth175-144
  • 175 ton
  • Max part length 144″
  • 8″ stroke
  • Autogauge 2 axis CNC 200 Control

Chicago 90 ton 1012-L Press Brake

chicago 1012-l
  • 90 ton
  • Max part size 144 in
  • 3 in stroke
  • Custom hydroform box

Premier 40 ton 440A Press Brake

premier 440A
  • 40 ton
  • Max part length 48″
  • Autogauge 3-axis CNC 300 Control

Di-acro 14 ton 14-48 Press Brake

diacro 14-48
  • 14 ton
  • Max part size 48 in
  • 1/2 in to 2 in adjustable stroke

Wysong H-2512 CNC Shear

wysong shear
  • Capacity 144 in x 1/4 in
  • PC 100 CNC Back Gauge

Farnham – leading edge roller

  • Roll Forming of Leading Edge Skins

Model 2-B Universal Hydraulic Joggle Press

  • Hot or Cold Joggling of Aluminum Extrusions and Formed Sheet
  • ST Quick Change Tooling

USI 200 ton Punch Press

  • 36 in x 60 in
  • Die Shoe For Blanking
  • Air Cushion to suit form tooling

Verson 105 ton Punch Press

  • Die Shoe For Blanking
  • Air Cushion to suit form tooling
