Milling

Cobalt invests in cutting edge machining centers and software technology to provide efficient, high-tolerance, high-specification machining capabilities. We employ a high percentage of 5-axis and 4-axis mills utilizing hyperMill CAM software embedded in Solidworks CAD software to provide cutting edge quality and efficiency.

DMG Mori DMU 85 Simultaneous 5-axis Universal Milling Machine

Mill 1 - DMU 85
  • Integrated swivel rotary table
  • 950 mm (36.8 in) X-axis travel
  • 850 mm (33.5 in) Y-axis travel
  • 650 mm (25.6 in) Z-axis travel
  • 1,800 kg (3,968 lb) table loading capacity
  • 65 HP 18,000 rpm max spindle speed
  • 60 HSK A-63 tool storage capacity
  • Full Interactive 5-axis

DMG Mori DMU 50 Simultaneous 5-axis Universal Milling Machine

mill 2 - dmu 50
  • Integrated swivel rotary table
  • 500 mm (20 in) X-axis travel
  • 450 mm (18 in) Y-axis travel
  • 450 mm (18 in) Z-axis travel
  • 500 kg (1100 lb) table loading capacity
  • 18000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity
  • 27hp spindle

Doosan VC630/5AC Ultra-high-precision, high-speed simultaneous 5-axis VMC

mill 3 vc6305ax
  • 650 mm (25.6 in) X-axis travel
  • 765 mm (30.1 in) Y-axis travel
  • 520 mm (20.5 in) Z-axis travel
  • 500 kg (130 lb) table loading capacity
  • 10,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity

DMG Mori NVX 5100 5-axis, high-rigidity, high-performance VMC

mill 4 NVX5100
  • 1,050 mm (41.3 in) X-axis travel
  • 530 mm (20.8in) Y-axis travel
  • 510 mm (20 in) Z-axis travel
  • 1200kg (2640 lb) table loading capacity
  • 15000 rpm max spindle speed
  • Cat 40 spindle taper
  • 30 tool storage capacity

Haas VF 7SS 5-axis, long bed VMC

mill 5 vf 7

  • 2,134 mm (84 in) X-axis travel
  • 813 mm (32 in) Y-axis travel
  • 762 mm (30 in) Z-axis travel
  • 10,000 rpm 40-taper spindle
  • 30 hp
  • 24 tool storage capacity
  • Haas TR-310  5-axis Trunion Table – 310 mm (12.2”) Tilting 2-axis Trunion Rotary Table, with scale feedback on the A (tilting) axis

Haas VF 4SS 5-axis VMC

mill 6 vf 4
  • 1,270 mm (50 in) X-axis travel
  • 508 mm (20 in) Y-axis travel
  • 635 mm (25 in) Z-axis travel
  • 12,000 rpm 40-taper spindle
  • 30 hp
  • 24 tool storage capacity
  • Haas TR-210  5-axis Trunion Table – 210 mm (8.27”) Tilting 2-axis Trunion Rotary Table, with scale feedback on the A (tilting) axis.

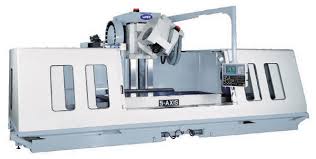

Mighty Viper VMC3100-5AB 5-axis, 50 taper, super-long bed VMC

mill 7 viper vmc31005ab
  • 3050 mm (120 in) X-axis travel
  • 1020 mm (40 in) Y-axis travel
  • 900 mm (35.4 in) Z-axis travel
  • 4550 kg (10000 lb) table loading capacity
  • 10000 rpm max spindle speed
  • Cat 50 tool shank
  • 20 tool storage capacity
  • 40 hp spindle
  • A and B axis +/- 35 degree

2ea DMG Mori NHX 4000 4-Axis, High-precision, High efficiency Horizontal Machining Center with pallet pool

mill 8 nhx4000
  • 560 mm (22 in) X-axis travel
  • 560 mm (22 in) Y-axis travel
  • 660 mm (26 in) Z-axis travel
  • 880 lb table loading capacity
  • 20,000 rpm max spindle speed
  • Cat 40 spindle taper
  • 120-tool storage capacity
  • 5 pallet pool
  • 300 psi thru spindle coolant

3ea DMG Mori Dura 5100 4-Axis, High reliability, High Performance VMC

mill 4 NVX5100
  • 1,050 mm (41.3 in) X-axis travel
  • 530 mm (20.9 in) Y-axis travel
  • 510 mm (20.1 in) Z-axis travel
  • 1,000 kg (2,200 lb) table loading capacity
  • 10,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity
  • Yuasa Trunion Style 4th axis Model DMTT522

DMG Mori NV 5000 4-Axis, High-precision, High efficiency VMC

mill 10 NV5000
  • 800 mm (31.5 in) X-axis travel
  • 510 mm (20.1 in) Y-axis travel
  • 510 mm (20.1 in) Z-axis travel
  • 1,000 kg (2,200 lb) table loading capacity
  • 14,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity
  • 30 hp spindle
  • 1,000 psi Cool Jet through-spindle coolant
  • SMW RT 160 4th axis

Komo 40/240 Long bed, extrusion VMC

mill 11 komo 40240
  • 6100mm (240 in) X-axis travel
  • 610 mm (24 in) Y-axis travel
  • 560 mm (22 in) Z-axis travel
  • 6,000 rpm max spindle speed
  • Cat 40 tool shank
  • 46 tool storage capacity

Komo 40/180 Long bed, extrusion VMC

mill 12 komo 40180
  • 4575mm (180 in) X-axis travel
  • 610 mm (24 in) Y-axis travel
  • 560 mm (22 in) Z-axis travel
  • 10,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity

DMG Mori NV 7000 Large axis, rigid, High Speed VMC

mill 13 nv 7000
  • 1,540 mm (60 in) X-axis travel
  • 760 mm (30 in) Y-axis travel
  • 660 mm (26 in) Z-axis travel
  • 4,400 lb table loading capacity
  • 20,000 rpm max spindle speed
  • Cat 40 spindle taper
  • 40-tool storage capacity

Doosan DNM750L High Productivity VMC

mill 14 dnm750l
  • 2160 mm (85 in) X-axis travel
  • 760 mm (30 in) Y-axis travel
  • 650 mm (25.6 in) Z-axis travel
  • 1,800 kg (3970 lb) table loading capacity
  • 12,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity

DMG Mori Dura 5100 High Reliability, High Performance VMC

mill 9 DV5100
  • 1,050 mm (41.3 in) X-axis travel
  • 530 mm (20.9 in) Y-axis travel
  • 510 mm (20.1 in) Z-axis travel
  • 1,000 kg (2,200 lb) table loading capacity
  • 12,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity

Mori Seiki SV500 High Rigidity VMC

mill 16 sv500
  • 1,020 mm (40.2 in) X-axis travel
  • 510 mm (20.1 in) Y-axis travel
  • 510 mm (20.1 in) Z-axis travel
  • 1,200 kg (2,640 lb) table loading capacity
  • 10,000 rpm max spindle speed
  • Cat 40 tool shank
  • 30 tool storage capacity
