Multi-Task Machining and Turning

Multi-task machine (MTM) tools represent some of the most capable and efficiency assets available today. Our MTM/turning workcenter consists almost entirely of MTM technology machines that can produce ultra-high tolerance parts including up to 11-axis capability and swiss machines.

DMG Mori NTX 2000SZM 11-axis High-Precision, Simultaneous 5-axis Mill Turn Center

mtm 1 ntx2000szm
  • Twin Spindle – machining on both spindles simultaneously
  • 12,000 rpm 5-axis with +/- 120o B-axis travel
  • 10 station turret, live tooling
  • Max work length  1540 mm (60.6 in)
  • Max turning dia  610 mm (24.0 in)
  • Max bar dia 65 mm (2.5 in)
  • 495 mm (19.5 in) / 160 mm (6.3in)  X1/X2-axis travel
  • 1560 mm (61.4 in) / 1402 mm (55.2 in) Z1/Z2-axis travel
  • +/- 125 mm (+/- 4.9 in) Y-axis travel
  • 38 tool ATC
  • 30hp

Doosan TT 2000 SY 8-axis Horizontal, Multi-turret, Simultaneous Turning Center

mtm 2 tt2000sy
  • Twin Spindles – machining on both spindles simultaneously
  • Upper and Lower Turrets -12 stations ea, live tooling
  • Max work length  350 mm (13.8 in)
  • Max turning dia  390 mm (15.4 in)
  • Max bar dia 67 mm (2.64 in)
  • 255 mm (10.0 in) / 190 mm (7.5 in)  X1/X2-axis travel
  • 800 mm (31.5 in) / 900 mm (35.4 in) Z1/Z2-axis travel
  • +/- 60 mm (+/- 2.4 in) Y-axis travel
  • 810mm (31.9 in) B-axis travel
  • 30hp/30hp

Doosan TT 1800 SY 8-axis Horizontal, Multi-turret, Simultaneous Turning Center

mtm 3 tt1800sy
  • Twin Spindles – machining on both spindles simultaneously
  • Upper and Lower Turrets -12 stations ea, live tooling
  • Max work length  230 mm (9.1 in)
  • Max turning dia  230 mm (9.1 in)
  • Max bar dia 65 mm (2.5 in)
  • 165 mm (6.5 in / 190 mm (7.5 in)  X1/X2-axis travel
  • 700 mm (27.6 in) / 720 mm (28.3 in) Z1/Z2-axis travel
  • +/- 50 mm (+/- 2.0 in) Y-axis travel
  • 770mm (30.3 in) A-axis travel
  • 30hp/20hp

Star SR 32J CNC Swiss Type 7-axis Automatic Lathe

mtm 4 star sr32j
  • Spindle, sub spindle
  • 6 station tool holder
  • 4-spindle sleeve holder; 4 front tools, 2 rear tool
  • Power driven att. 4-15 tools
  • Max machining dia 32mm (1.25 in)
  • Max work length 310mm (12.2 in)
  • 10hp

Star SR 20 RII CNC Swiss Type 7-axis Automatic Lathe

mtm 5 star sr20 Rii
  • Spindle, sub spindle
  • 6 station tool holder
  • 4-spindle sleeve holder; 4 front tools, 4 rear tool
  • Power driven att. 5-10 tools
  • 2-spindle front sleeve holder; 2 tools
  • Max machining dia 20mm (0.79 in)
  • Max work length 205mm (8.1in)
  • 5hp

Star SR 20 CNC Swiss Type 7-axis Automatic Lathe

mtm 6 star sj20
  • Spindle, sub spindle
  • 6 station tool holder
  • 3 rotary tools
  • 3 back working tools
  • Max machining dia 20mm (0.79 in)
  • Max work length 205mm (8.1in)
  • 5hp

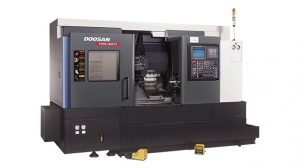

Doosan 2600SY High Performance Turn/Mill Center

mtm 7 2600sy
  • Spindle, Sub-spindle
  • Single 12 station turret, live tooling, Y-axis
  • Turning, end mill, tapping, face mill, grooving
  • Max work length 760 mm (30 in)
  • Max turning dia  376 mm (14.8 in)
  • Max bar dia 76 mm (3.0 in)
  • 260 mm (10.2 in) X-axis travel
  • 830 mm (32.7 in) Z-axis travel
  • 830 mm (32.7 in) B-axis travel
  • +/- 52.2 mm (+/- 2.1 in) Y-axis travel
  • 30hp

DMG Mori NL 2000 SY Rigid, Precise Turn/Mill Center

mtm 8 nl200sy
  • Spindle, Sub-spindle
  • Single 12 station turret, live tooling, Y-axis
  • Max work length 510 mm (20.0 in)
  • Max turning dia  366 mm (14.4 in)
  • Max bar dia 65 mm (2.5 in)
  • 260 mm (10.2 in) X-axis travel
  • 590 mm (23.2 in) Z-axis travel
  • +/- 50 mm (+/- 2 in) Y-axis travel
  • 20hp

DMG Mori NL 2000 S Rigid, Precise Turn/Mill Center

mtm 9 nl2000s
  • Spindle, Sub-spindle
  • Single 12 station turret, live tooling
  • Max work length 510 mm (20.0 in)
  • Max turning dia  366 mm (14.4 in)
  • Max bar dia 65 mm (2.5 in)
  • 260 mm (10.2 in) X-axis travel
  • 590 mm (23.2 in) Z-axis travel
  • 20hp

Doosan Lynx 220LMA High Speed Turn/Mill Center

mtm 10 Lynx220LMA
  • Single Spindle
  • Single 12 station turret, live tooling
  • Max work length 510 mm (20.0 in)
  • Max turning dia  250 mm (9.8 in)
  • Max bar dia 51 mm (2.0 in)
  • 175 mm (6.9 in) X-axis travel
  • 550 mm (21.7 in) Z-axis travel
  • 20hp

DMG Mori F-L1 2-axis CNC lathe

mtm 11 fl1
  • Max bar diameter 1.75 in
  • 8″ chuck
  • Max turnig dia 9.84 in
  • Max turning length 19.7 in
  • 8 position turret
  • 6hp

DMG Mori SL-154/500 2-axis CNC lathe

mtm 12 sl154500
  • Max bar diameter 1.75 in
  • 6″ chuck
  • Max turnig dia 11.8 in
  • Max turning length 19.2 in
  • 12 position turret
  • 7.5hp
